RGBCW (RGB+CCT) COB Strip Light
IP rating: IP20
Wattage: 20W/Meter
Length: 5m
Width: 12mm
LED Quantity: 840LEDs/Meter
Cutting Length: 42.5mm
Color temperature: RGB+ CCT (ranging from Warm White(2700K)~Daylight(6500K)).
Color Rendering Index: Ra＞90
View angle: 180°
The LED type of this strip light is COB (Chip-on-Board), which means multiple LED chips are packaged together as one lighting module. This design helps to produce high-intensity illumination and better energy efficiency. It provides dot free color changing lighting with no visible spots. The color of the strip light is RGB+ CCT Tunable White, which means it has RGB primary colors and white colour ranging from 2700K Warm white to 6500K daylight.

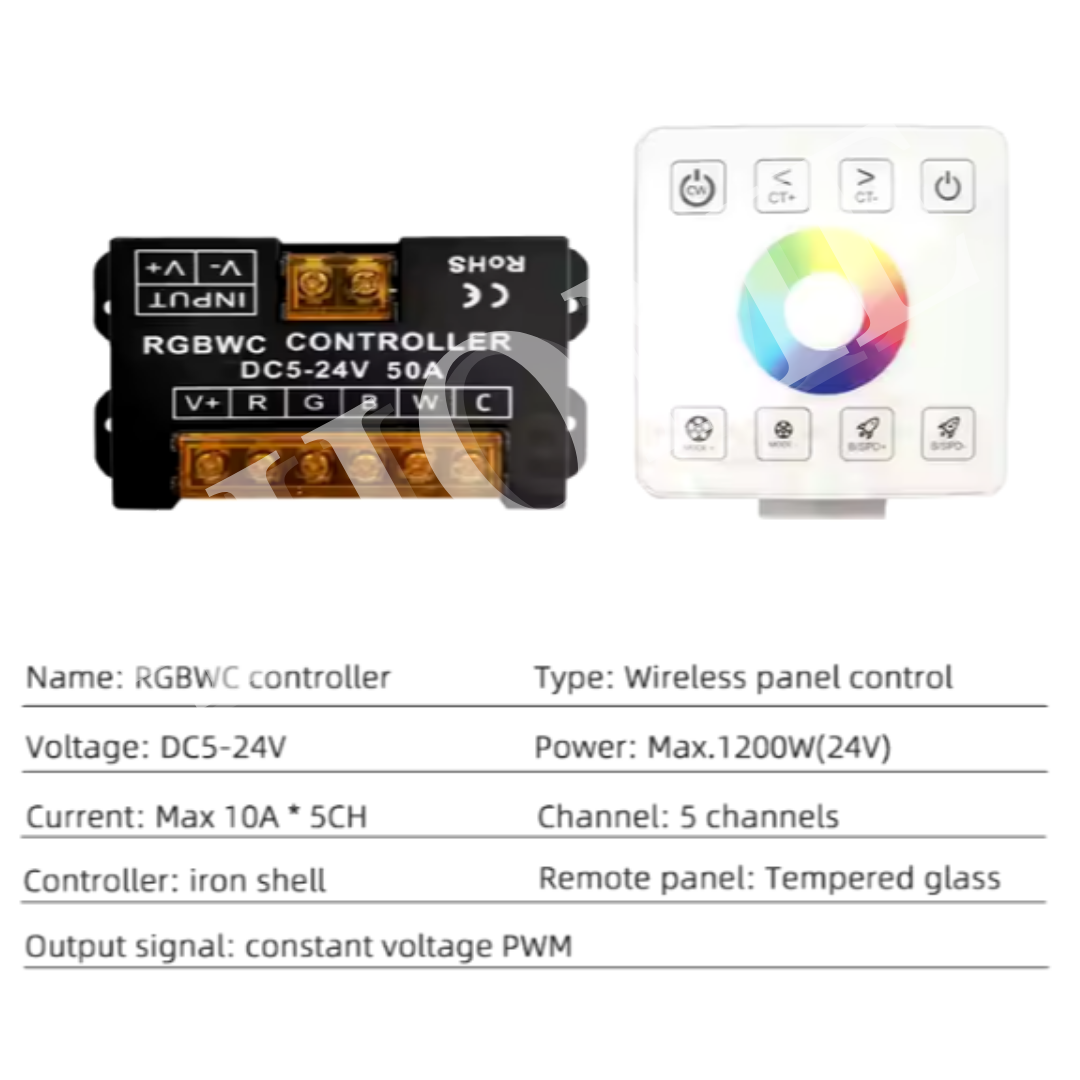

RGBWC(RGB+CCT) Touch panel controller
Working Temperature : -20-60℃
Voltage supply : DC 5V~24V
Output : 5 COMS drain outputs
Connect mode : Common anode
Static power : <1W
Output current : <10A(each channel)
Output Power : 5VV<250W, 12V<600W, 24V<1200W
Remote size : L86*W86*H12mm
Controller size : L103*W62*H22mm

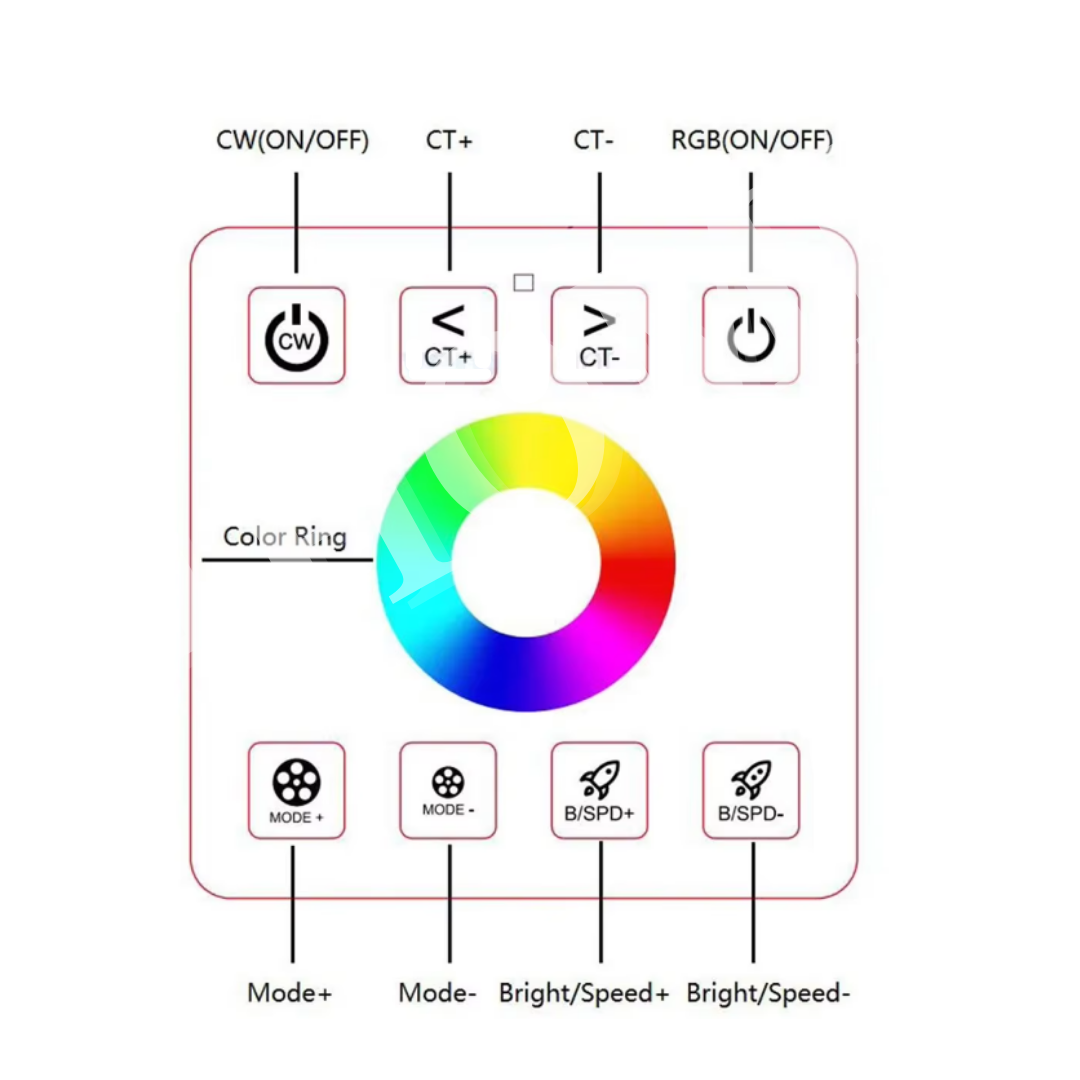

Brightness and speed can be adjusted in each mode.
Color temperature +/-: 31 color temperature levels plus or minus
Brightness/speed addition and subtraction: dynamic speed adjustment, static brightness adjustment. 10 levels (can be fired in bursts).
Code pairing (one-to-one control): Press and hold the MODE+ button within 5 seconds after the controller is powered on, and the light bar will flash slowly 3 times.
Clear code (one-to-many control): Press and hold the MODE-button within 5 seconds after the controller is powered on, and the light bar flashes 3 times quickly.
Precautions:

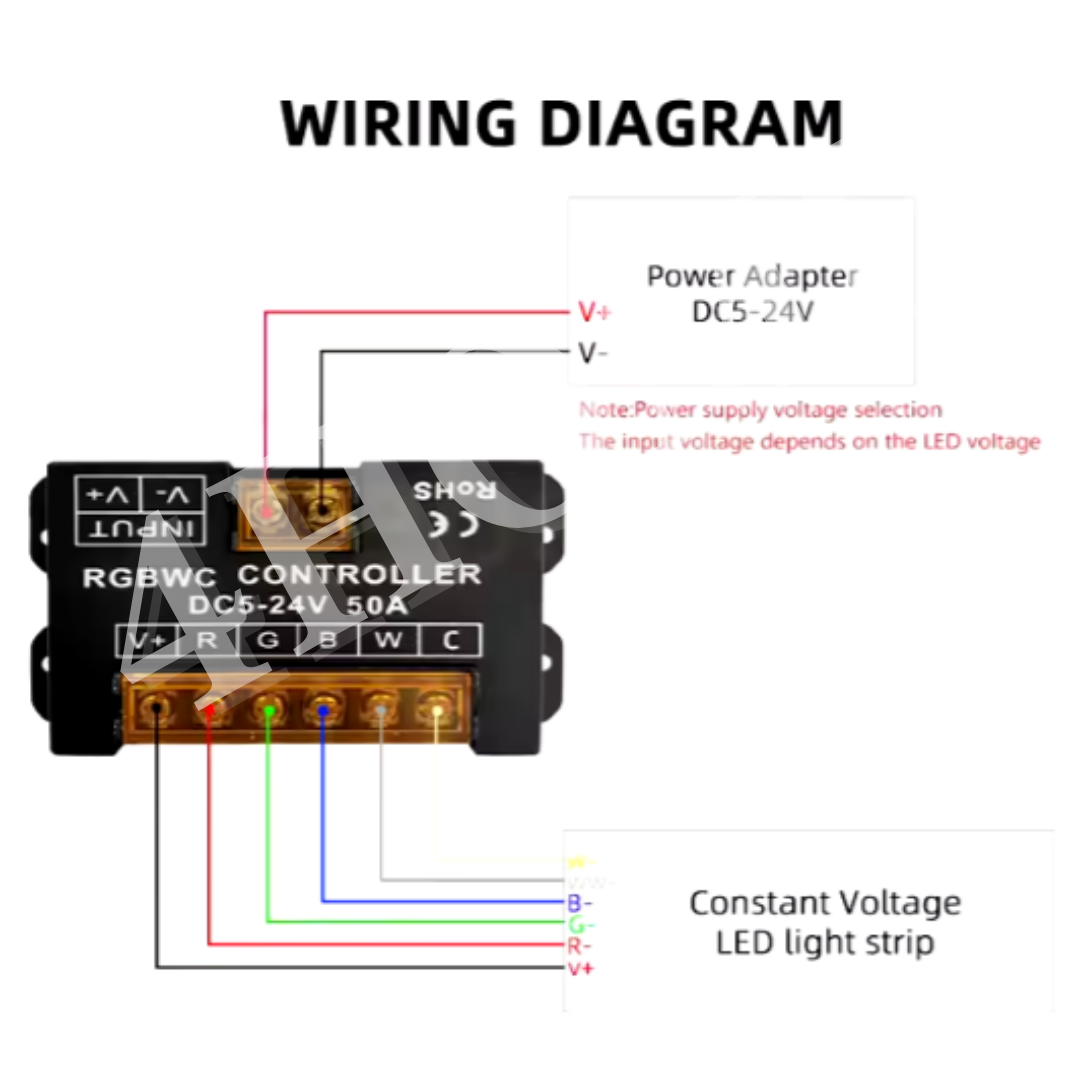

1. Please connect according to the input power supply of the controller. You need the power adapter to be used together. Do not directly input high voltage or other voltages. Please pay attention to safety when connecting.
2. Please connect the power supply, controller and lamps in the power-off state, and then turn on the power after connection. Please do not reverse the positive and negative poles of the input and output.
Power adaptor / Power Supply
24V 100W: Recommended for 5m
For more than 5m, kindly reach out to us
